Magnet Analyzer / High customer satisfaction & number of shipments

An analysis of the magnetizing ripple is needed every day. Everything will start from here.
Since miniaturization and high accuracy is the most important theme in the motor industry, a progression in the field of magnetizing ripple analysis is demanded.
Taking advantage of our spindle motor design experiences, we develop and manufacture many magnet analyzers with high accuracy, functionality, and operability.
We also produce a magnet analyzer which fulfills each customer's needs.

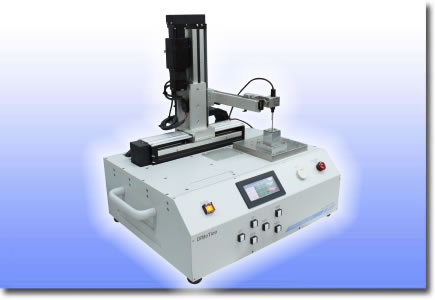

FSMA-1500 (New Product)

Magnet analyzer for planar magnetic field
Ideal for magnetic vector analysis of sensor magnet

In FSMA-1500, it is necessary to measure magnetic flux density in X, Y, Z three axis directions in magnetic measurement of a single magnet not a closed magnetic path such as a sensor magnet. We developed a planar type 3-axis magnet analyzer pursuing accuracy, operability, and analyticity. It is ideal for magnetic vector analysis of sensor magnet.

.
MAD-310RAS

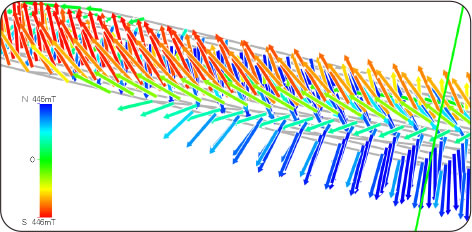

<Plane vector measurement waveform image (3D)>
平面ベクトル測定波形(3D)

Features

  • Measurement moving range X: 150mm Y: 150mm Z:150 mm
  • Moving minimum resolution X:0.01mm Y:0.01mm Z:0.01mm
  • Measurement magnetic flux range 0.01mT (millitesla) to 4T (tesla)
  • Measurement position of true value by encoder
  • High-speed sampling (about 8 times faster than that of normal type)

Original function

  • The industry's first function 1
    The measured vector data waveform can be displayed while rotating 360° using the mouse.
  • The industry's first function 2
    Detailed data of an arbitrary point can be displayed by clicking the vector waveform shape.
  • The world's smallest size
    Ultrafine probe FC-075 can be used (width 0.6mm × thickness 0.28mm)
  • Simple operation
    Fine adjustment of slider position by JOG dial is possible (moving minimum resolution 0.01 mm).

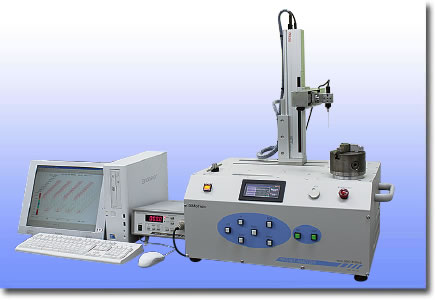

MAD-310RAS

Anytime/Anyone the same value Commitment to reproducibility

The MAD-310 RAS has a memory function of X, Y, Z axis coordinates, which pursues reproducibility so that anyone can obtain the same measured value at any time. Our proprietary ultrafine probe F-075 which is effective for proximity measurement of magnetic flux (width 0.6 mm × thickness 0.28 mm) can also be used.
.
MAD-310RAS
Magnet analyzer/measuring waveform image

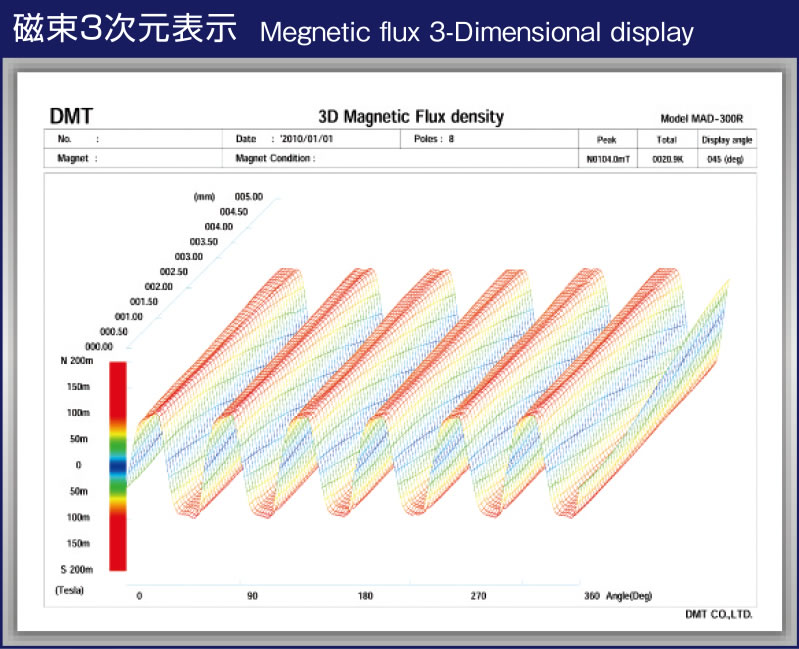

磁束3次元表示

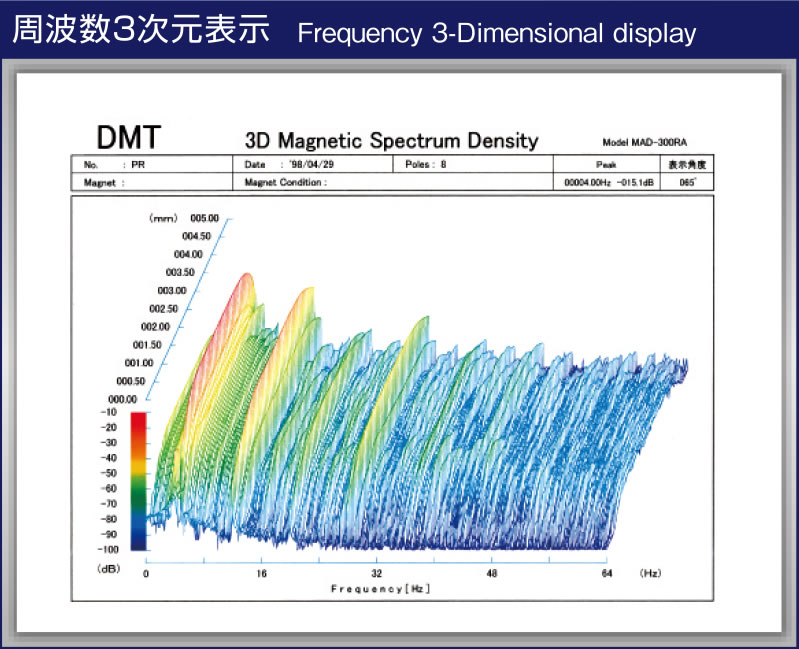

周波数3次元表示

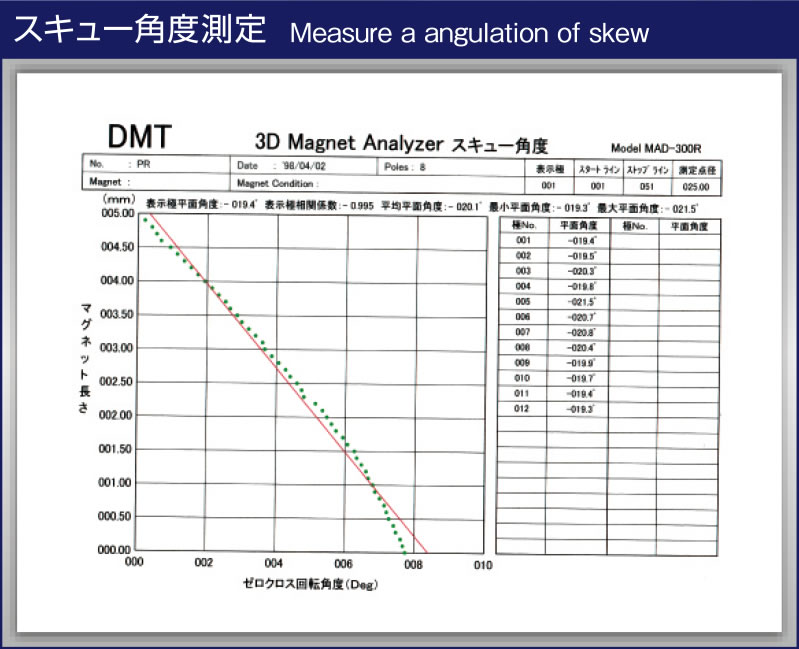

スキュー角度測定

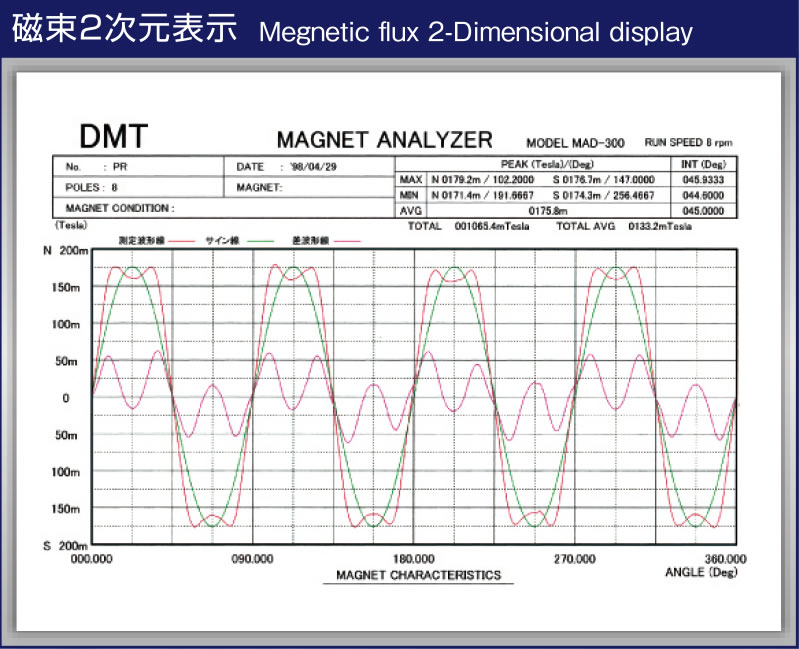

磁束2次元表示

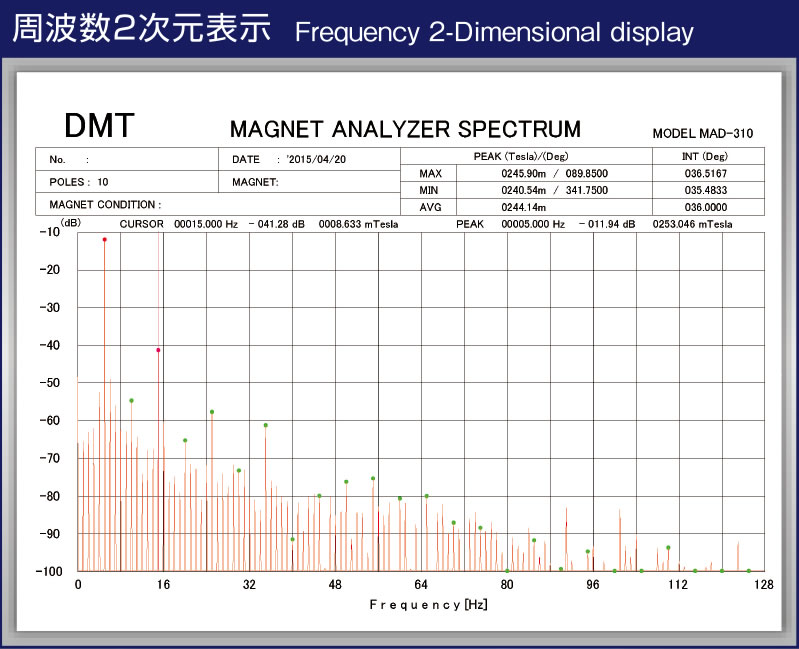

周波数2次元表示

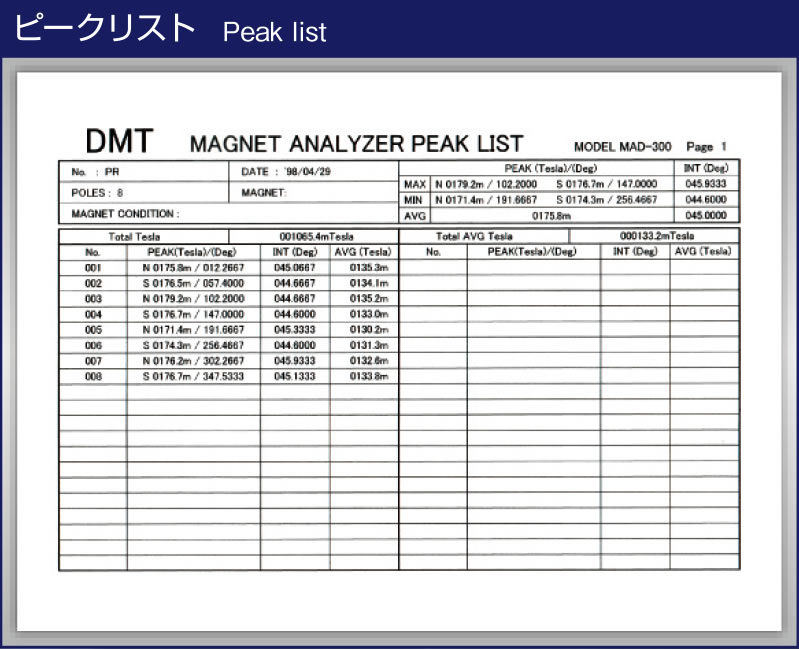

ピークリスト

Features

  • Easy positioning of slider by jog dial
    0.01mm/0.05mm/0.1mm step
  • Memory function and program measurement of X, Y, Z coordinates are possible.
  • Point auto function:
  • Frequency analysis function (patented)
  • Skew angle measurement is possible (patented).
  • Rotational angle measurement. max.43,200p/rev
  • Up to 200 mm for automatic movement and up to 0.01 mm for resolution are possible.
  • 2D editing function (2D)
  • Data transfer to spreadsheet software:
  • ASCII output calculation
  • Vector measurement/analysis (optional)
  • The ultrafine probe F-075 (width 0.6 mm × thickness 0.28 mm) can be used.

Option

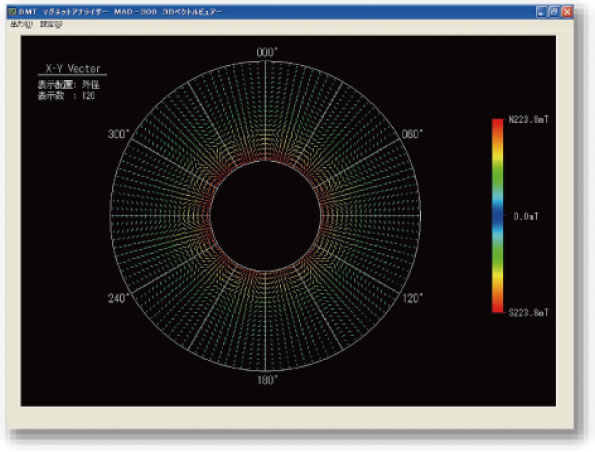

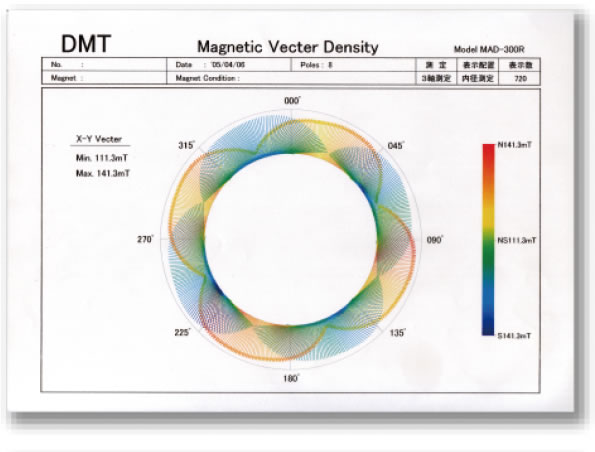

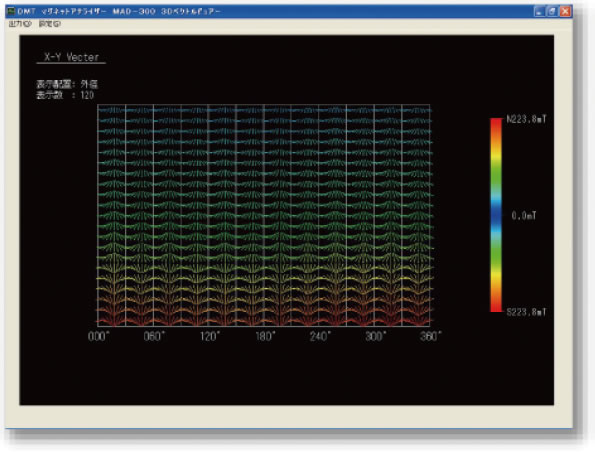

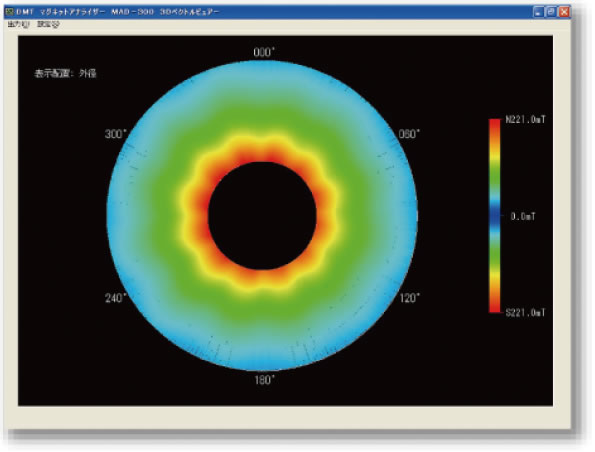

  • Various vector map display:

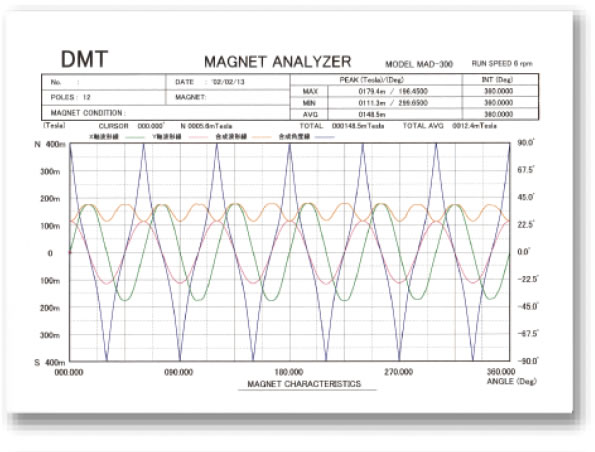

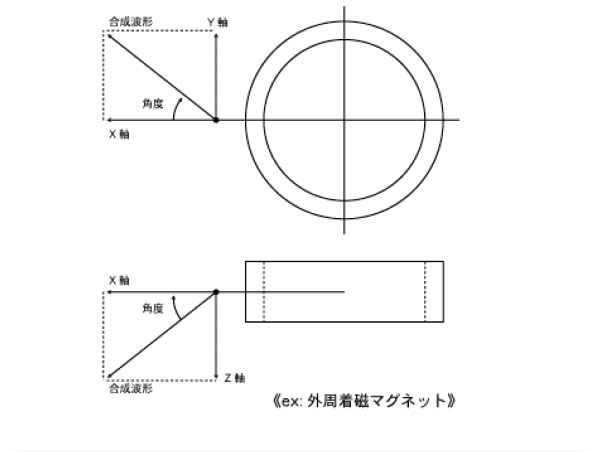

  • Synthesis waveform display in two axis directions (three axis directions) is possible.
  • The industry's first
    angle display function of synthesis waveform and frequency analysis
オプション
オプション
オプション
オプション
オプション
オプション

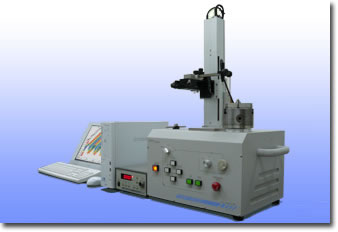

Magnet Analyzer MAD-310R/310RA/310A

The best-seller analyzers with lots of advocates. (3D display model)
MAD 310R/310RA/310A are magnet analyzers which automatically measure the magnetic-flux distribution of the magnetized cylindrical magnets, and analyze the magnetizing ripple, amount of magnetic-flux on each pole, magnetizing angles, and size of the area.
This has a 3-D display; X=rotation angle (Deg), Y=Surface magnetic-flux density (Tesla), Z=height (mm)
This also has the frequency 3D display; X=Frequency (Hz), Y=magnetic-flux (dB), Z=direction of height (mm)
This can be used as a 2D display device. It is also possible to pick-up data from a 3D ripple to a 2D ripple.
Automatic pointing function is optional.
Magnet Analyzer

Features

  • Frequency analysis function (patented)
  • This can measure skew angle patented
  • Rotation angle resolution: max. 43,200p/rev
  • Automatic transfer: max. 200mm, Resolution: max. 0.01mm
  • 2D editing function (2 dimensional)
  • This can forward the data to a spreadsheet software.
  • ASCII output function
  • Measurement and analysis of vectors (optional)
  • Automatic pointing function (optional)
  • The ultra superfine probe F-075 (width 0.6mm × thick 0.28mm) can be used.

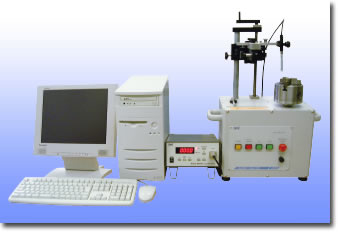

Magnet Analyzer MAD-200

2D display model
Magnet Analyzer

Features

  • Frequency analysis function patented
  • Rotation angle resolution: max. 10,000p/rev
  • This can compare the data to a SIN ripple and display the difference.
  • The data of maximum value, angle, and area of each pole,
  • Measurement at any points is possible with the horizontal cursor.
  • This can display the data of the close list with the vertical cursor.
  • It is possible to transfer the ripple to any points.
  • This can display 6 samples at the same time with the memory function.
  • The ultra superfine probe F-075 (width 0.6mm × thick 0.28mm) can be used.
*The specification and the exterior might be changed without notice.
